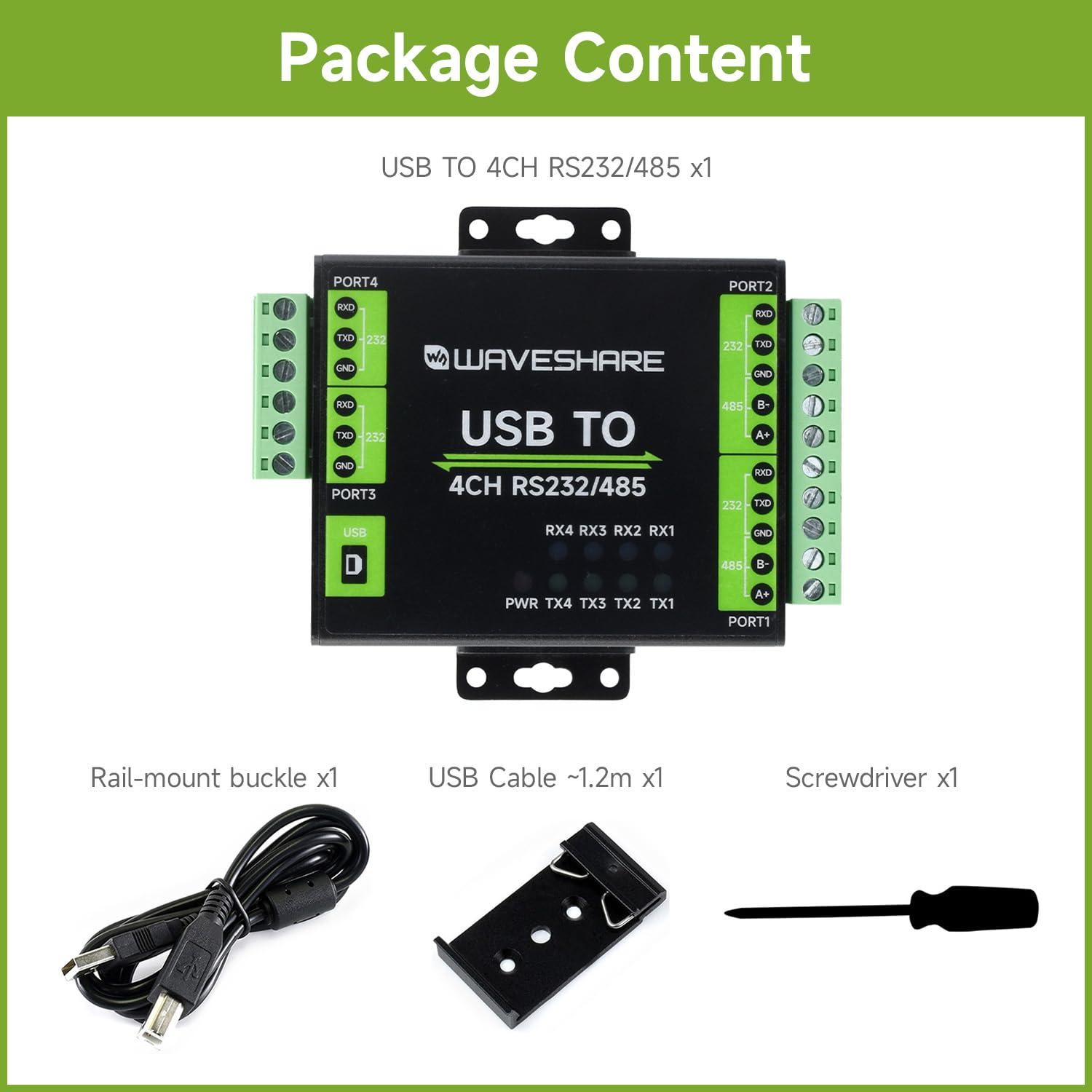

Waveshare Industrial Isolated USB To RS232/485 Converter, Original FT4232HL Chip, Supports USB To 2-Ch RS232 + 2-Ch RS232/485, Wall-Mount & Rail-Mount Support

Dispositivos compatibles: Televisión
Marca: Waveshare
Tipo de enchufe de alimentación: Sin enchufe
Fabricante: Waveshare

- Adopts original FT4232HL chip, fast communicating, stable and reliable, better compatibility. Supports USB to 2-ch isolated RS232/485 + 2-ch isolated RS232
- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal. Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
- Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption. Onboard 120R terminal resistor on the RS485 interface, enabled/disabled via jumper.
- Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance. 9 LEDs for indicating the power and transceiver status
- Industrial grade metal case, supports wall-mount and rail-mount installation, solid and beautiful, easy to install
